IsoMod® Modular Fire Barrier Walls

(Contact us to learn more information, or scroll below to receive a quote for consideration)

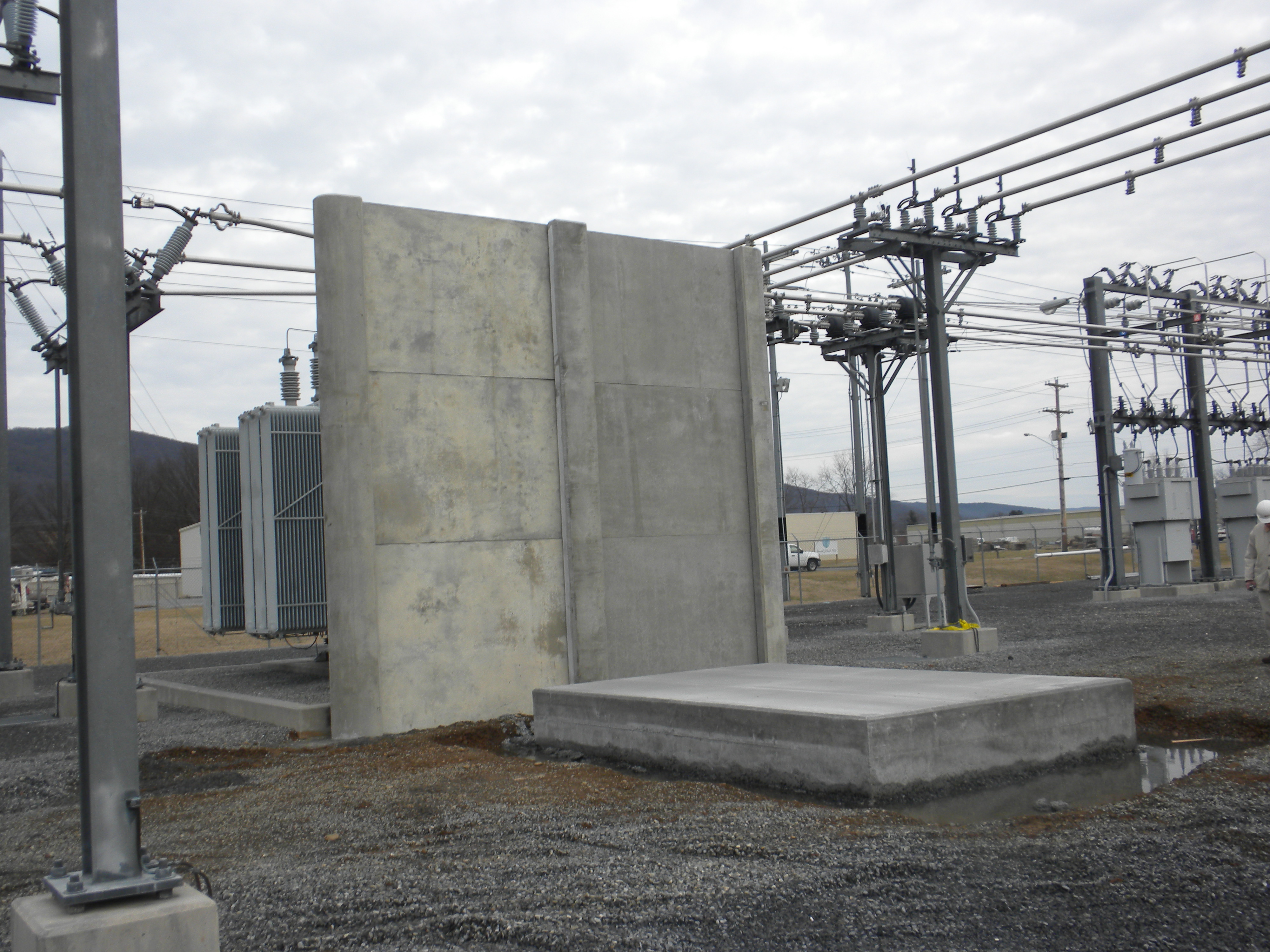

IsoMod® Modular Fire Barrier Walls are installed around electrical transformers to protect

adjacent property and equipment from fire, shrapnel debris, and other side effects resulting from transformer explosions.  We will be glad to install the walls for you, or work with an existing contractor.




Without Walls                                       With Walls




The consequences of a transformer explosion are extremely significant.  Here at SRE we have developed

a modular precast wall to fit your needs from both a cost and an installation standpoint.

THE RISK DOES EXIST, CONTAIN IT!

IsoMod® vs. Deluge System Option

Risky Deluge System Option:
Deluge systems are not always accountable.  Sediments collected in the pipes, frozen water and poor water pressure all contribute to deluge system failures.  Overall maintenance of deluge systems are a full time job in and of themselves.  In addition, as water from the deluge system and oil from the transformer overfill the drainage pit, the fire is likely  to flow beyond the limits of control.  Engineers are jointly coming to the conclusion that deluge systems may not be the most effective way to protect surrounding assets.


Secure IsoMod® Barrier Wall Option:
In the unfortunate event of a fire, barrier walls have proven time and again to effectively contain fire spread and protect surrounding equipment from shrapnel debris.  Once installed, equipment owners can direct their focus to other crucial tasks as opposed to regularly maintaining the walls.

IsoMod® Characteristics:

                   Meets 2 hour Fire Rating in Confined Space (ASTM 119)

                      Meets Wind Loading of 130 miles per hour with 2000 PS

   Withstands Hose Stream Test (ASTM E-226)

                                                  Modular design enables un-troublesome wall installation and breakdown

                                    Modular design allowing for the replacement/removal of sections

                            Wall comprised of concrete allowing for affordable protection

                                Two/three columns supporting the wall eliminating need to dig
a trench the entire width of the wall

                       Little to no maintenance; able to withstand the elements

                                                        Made in the U.S.A.

 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

IsoMod® Quote:
Here at SRE, we are always evolving our products to best meet the needs of our customers.
Send us the information below to receive an IsoMod® quote for consideration.

Our concrete modular design may be exactly what you're looking for!

Timeline:
When do you need your walls?   (month/year)
                     Outage Schedule:   (month/year)


Measurements:
How many walls do you need?

How wide do you want the walls? ft.

How high do you want the walls? ft.

Wall 1: Distance between transformers/adjacent objects: ft.
Wall 2: Distance between transformers/adjacent objects: ft.
Wall 3: Distance between transformers/adjacent objects: ft.
Wall 4: Distance between transformers/adjacent objects: ft.
Wall 5: Distance between transformers/adjacent objects: ft.

If relevant to location, what is the company policy for high voltage clearance issues:

Pictures/Drawings?
Do you have pictures you can send us?
  YES   NO

Do you have drawings you can send us?
YES    NO

Do the drawings include above ground and underground configurations?
YES    NO

Any other details we should know?

Installation:
 Would you like us to supply a contractor for you? OR  Would you like to install with your own contractor

* Contractor Company Name:

         * Contact  Name:

          * Phone Number:

          * Email Address:

Site Contact Information:

* Company/System Name:

* Plant Name:

* Site Physical Address:
                                                                 Street                                                  City                                           State                          Zip


                                               P.O. Box Number                            City                                           State                              Zip

* Your Full Name:

  Job Title:

* Email Address:

* Phone Number:                  Alternate Phone:

 Preferred Time of Contact:   Morning    Afternoon

Time Zone:
  Eastern
Central
    Mountain
Pacific




- Thank you for the opportunity to send a quote. We look forward to serving you! -
